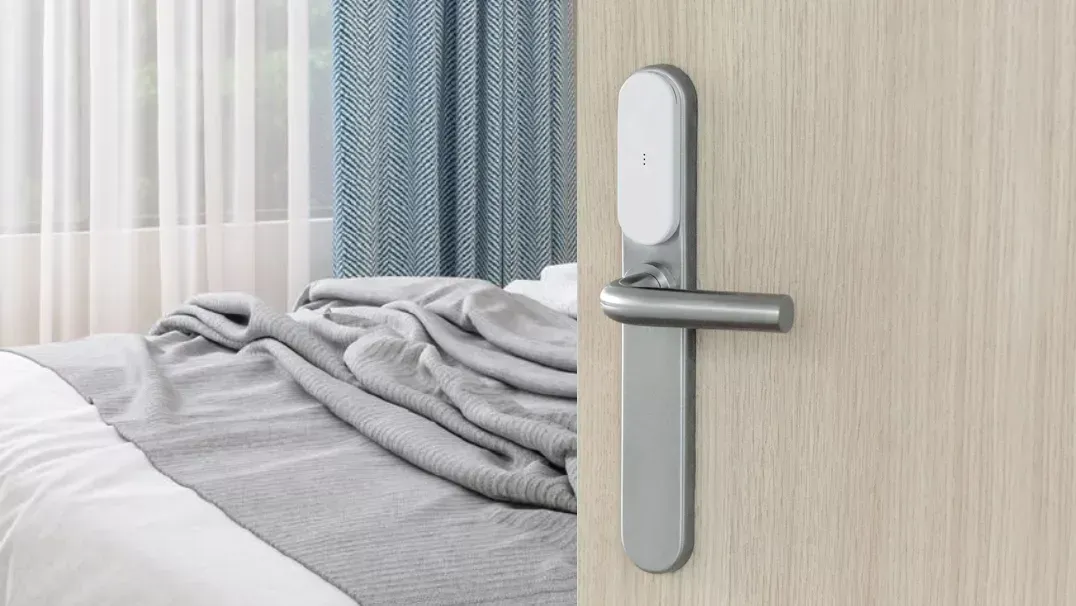

I-Max Electronic Lock

Wire-free & Battery Powered: No wiring needed; supports 90,000–126,000 cycles per battery life.
Multi-Door Compatibility: Works with wooden, aluminum, glass, sliding, and emergency exit doors.
Design Variety: Sleek, modern look with multiple handle styles and finishes (antibacterial options available).
Smart Access Options: Open via RFID, PIN, phone (Openow™ BLE), or dual authentication (e.g., RFID + PIN).
Secure Internal Mechanism: All critical components (batteries, control unit) are located inside the door.
High Traffic Ready: Built for use in hotels, tourist apartments, common access doors, and campgrounds.
Custom Modes: Supports passage mode, double user access, keypad-only (Check-in by PIN), and more.
Certified Strength & Safety: EN1906 Grade 4 (high durability), EN1634 Fire rating, CE, ROHS, REACH.
Audit Trails: Stores up to 3,000 users and 1,200 events with real-time clock and calendar.
Remote Management: Upgradeable to wireless online mode for remote key issuance and door monitoring.
ADA-Friendly: Option for extended opening times for accessibility.

Supported door thicknesses: From 30mm up to 120mm
Reader dimensions: 92.6mm (H) x 40.5mm (W) x 24.2mm (D) (external escutcheon)
Battery/control unit dimensions (internal): 110mm (H) x 43.2mm (W) x 24.2mm (D)
Spindle compatibility: Split spindle system with various lengths depending on door width
Handle mechanism: Electromechanical clutch activated via special spindle system
Handle rotation: 60º lift-to-lock movement
Mortise compatibility: Works with UL ANSI lockcases, tubular latches, and supports panic exit with internal handle
Reader frequency: 13.56 MHz (MIFARE Classic, DESFire, Ultralight, ISO 15693, SKIDATA)
Reading distance: 2–4 cm
Battery type: 3x LR03 AAA 1.5V alkaline
Battery life: Up to 126,000 cycles or ~2 years standby
Ingress protection: IP56 (Extreme version for exterior use)
