Electronic LOCKs

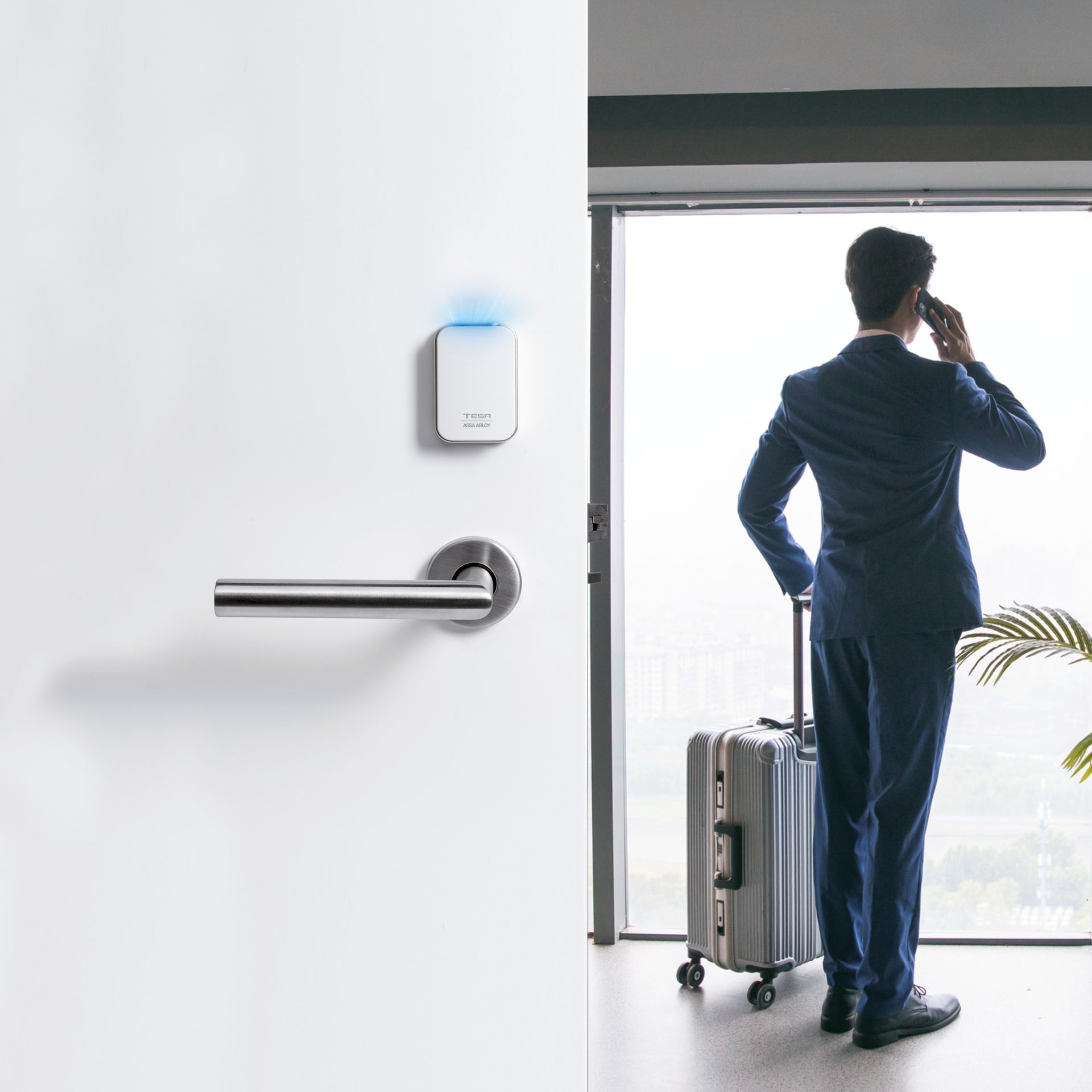

I-Volution

Blending sleek design with smart innovation, the I-Volution electronic lock is the result of TESA ASSA ABLOY’s ongoing commitment to next-gen access control. Built for modern properties, it combines minimalist style with advanced technology to meet the evolving demands of today.

VARIATIONS

Sleek, Avant-garde Design

Versatile design, premium finishes, and flexible access modes. I-Volution brings high-end style to any door. Built to match your aesthetic and ready for mobile access with Openow™, it’s the lock that adapts to your space without compromise.

Key Features

  • Multi-Platform Integration: Works with all TESA Hotel systems, from basic card access to advanced wireless and mobile (Openow™).

  • Smart Access Credentials: Supports RFID (cards, keyrings, bracelets) and Bluetooth-enabled mobile phone unlocking.

  • Secure Internal Mechanism: Includes an electromechanical mortise lock with motorized clutch and a 1-inch automatic deadbolt.

  • Custom Access Modes: Standard, passage, double-user, and first-user access modes for flexible operation.

  • Real-Time Monitoring & Control: Wireless-ready with full integration into TESA Hotel software. Real-time status, remote updates, and emergency lockdown capability.

  • Built-in Sensors: Detect door open/closed status, improper closure, intrusions, and use of the mechanical override key.

  • Privacy at a Button: Internal electronic privacy button disables outside access when room is occupied.

  • Emergency Override: Optional mechanical cylinder with logging of manual override events.

  • Battery-Efficient: Up to 105,000 operations on a single set of batteries; up to 3 years standby time.

  • Certified Protection: CE, ROHS, REACH, WEEE, IP56, EN14846, EN12209, EN1634, UL.

  • Design Flexibility: Compatible with a wide range of DIN handles and comes in various finishes to match décor.

  • Antibacterial Option: Handles in stainless steel can be treated with certified antibacterial coating for added guest safety.

Technical Specifications

  • User Capacity: Up to 3,000 users

  • Event Storage: Up to 1,200 logs with real-time clock/calendar

  • Reader Type: RFID (13.56MHz MIFARE Classic / Ultralight)

  • Reading Distance: 2–4 cm

  • Power Supply: 3x AAA 1.5V alkaline (LR03) batteries

  • Battery Life: 80,000–105,000 openings or up to 3 years standby

  • Door Thickness Support: 35mm to 114mm

  • Ingress Protection: IP56

  • Memory Type: Non-volatile memory

  • Time Management: 30 time zones, 5 periods/day, 365-day calendar, automatic DST updates

  • Lock Mechanism: Motorized ANSI mortise lock with 1-inch deadbolt and panic release

  • Mobile Integration: Supports Openow BLE and TESA Hotel App

  • Software Compatibility: Wireless, Read/Write, Online upgrades available

  • Emergency Access: Optional mechanical cylinder override
