Electronic LOCKs

I-Minimal

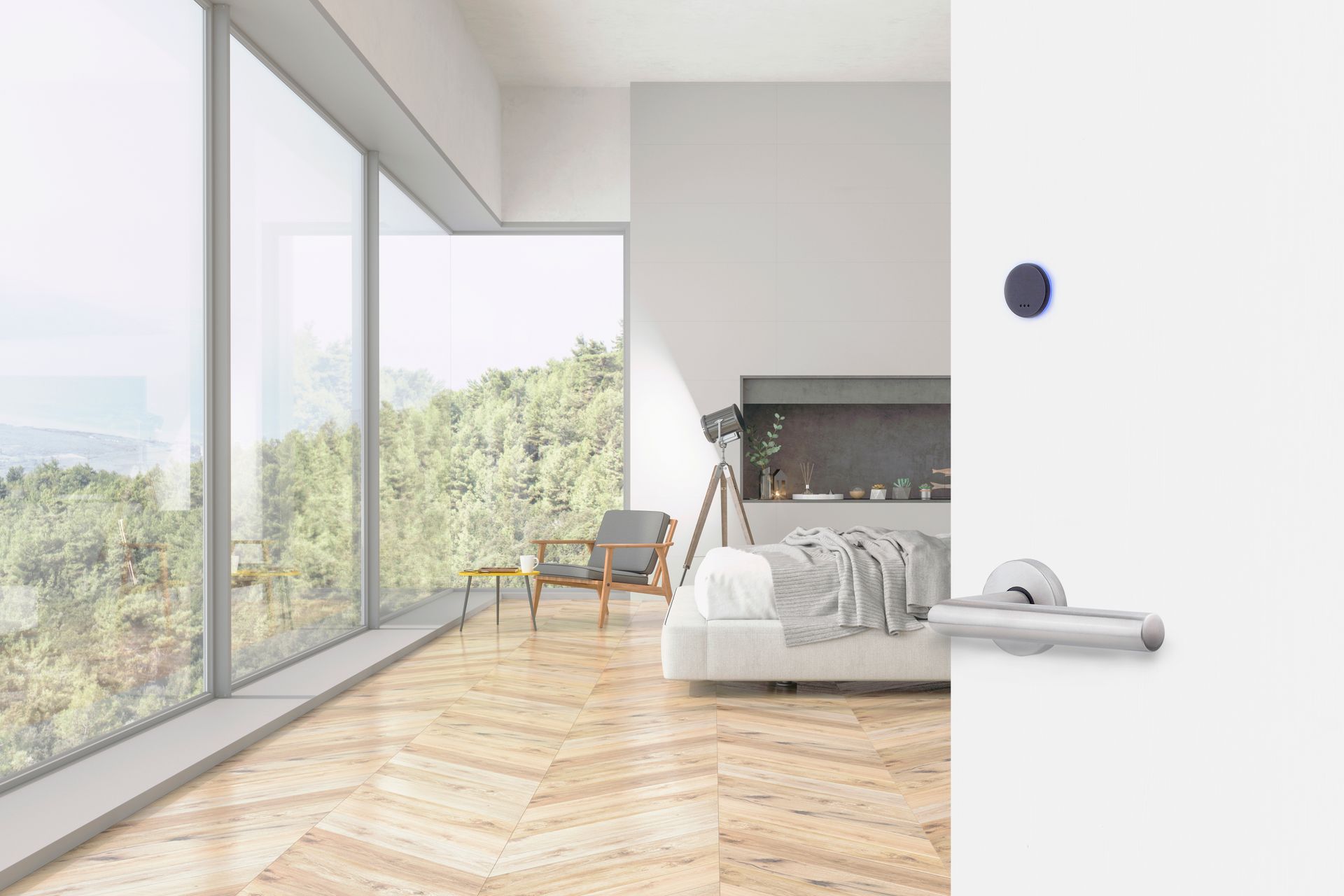

Equip high-traffic doors with a low-profile, battery-powered lock that blends seamlessly into any design. The I-Minimal delivers real-time control, privacy at the push of a button, and full wireless access, without the need for drilling, wiring, or visible hardware. Designed for durability and elegance.

VARIATIONS

Minimal Design, Maximum Possibilities

Choose from a wide range of reader finishes, handle styles, and access options to create a locking solution that fits your space. Unlock with RFID cards, smartphones via Bluetooth, or remote credentials. Designed for flexibility, privacy, and seamless control.

Key Features

  • Fully Concealed Design: All electronics and mechanics are hidden inside the door for minimal visual impact.

  • Wire-Free Operation: Battery-powered, with no cabling required during installation.

  • Multi-Credential Access: Supports RFID cards, Bluetooth (Openow™ app), and remote opening via TESA Hotel App.

  • Smart Status Monitoring: Built-in sensors detect open doors, intrusion attempts, improper closure, and use of mechanical override.

  • Real-Time Events & Remote Control: Integrates with TESA Hotel’s wireless online system for live door status, access changes, alarms, and lockdowns.

  • High-Capacity Memory: Supports up to 3,000 users and stores 1,200 access events.

  • Custom Access Modes: Passage mode, First User mode, and Double User mode available.

  • ADA-Friendly: Configurable opening times (standard: 1–240s; ADA: extended duration).

  • Enhanced Security Features: Automatic 2.54 cm deadbolt, panic function, optional mechanical override, and double authentication support.

  • Certified Safety: EN14846, EN12209, EN1634 (Fire), IP56, CE (EMC, R&TTE), ROHS, REACH, WEEE.

  • Design Variety: Compatible with a wide range of DIN handles and available in finishes like stainless steel, chrome, brass, black, and white.

  • Antibacterial Option: Certified antibacterial coating available on select stainless steel handle models.

Technical Specifications

  • User Capacity: Up to 3,000 users

  • Event Storage: Up to 1,200 logs with real-time clock/calendar

  • Reader Type: RFID (13.56MHz MIFARE Classic / Ultralight)

  • Reading Distance: 2–4 cm

  • Power Supply: 3x AAA 1.5V alkaline (LR03) batteries

  • Battery Life: 80,000–105,000 openings or up to 3 years standby

  • Door Thickness Support: 30mm to 110mm

  • Ingress Protection: IP56 (Extreme version for outdoor use)

  • Time Management: Up to 30 time zones, 5 periods/day, 365-day calendar, automatic DST updates

  • Lock Mechanism: Motorized clutch with automatic deadbolt (2.54cm) and panic function

  • Mobile Integration: Compatible with Openow BLE and TESA Hotel Remote App

  • Software Compatibility: Wireless, Read/Write, and Online modes with remote update capability

  • Emergency Access: Optional mechanical half-cylinder override (with logging)
